TC20
With the same construction and finish as our FMCA series, the TC20 can be floor-mounted with confidence, but its design makes it ideal for mounting connectors and cables in stairs. It provides connector concealment in a box that mounts flush on the face of most stair risers, where the low cable exit minimizes the trip hazard.
TC20 floor box assembly includes: 1ea cover, 1ea gasket, 1ea basket, mounting screws and hardware.
Insert panels and rough-in box ordered separately.

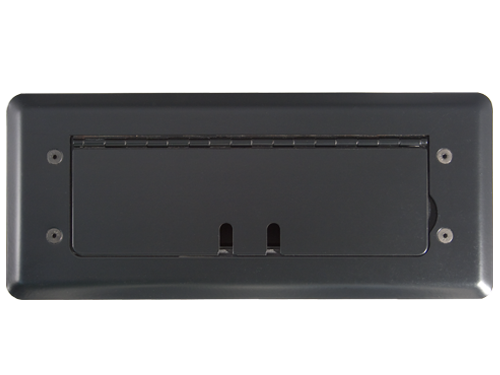

Attractive satin black 12 gauge scratch resistant cover with powder coated finish

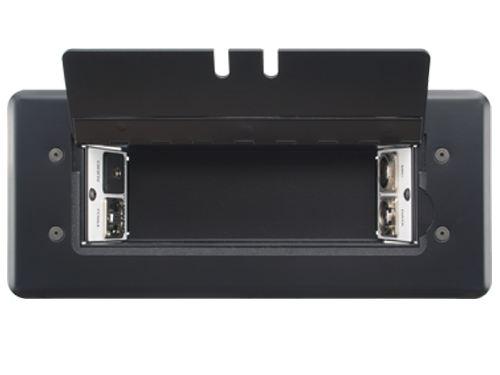

Accepts all DuoLine Insert Panels (up to 4 XLR type connectors or active devices)
Cable Slots allow 4 cables up to 1/4" O.D.
Self-trimming cover installs on top of carpet or hard surface
Accommodates Extron® MAAP active devices

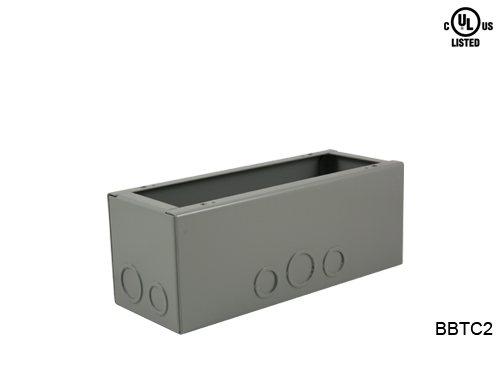

Concrete rated rough-in box for installation above grade
