FMCA2800

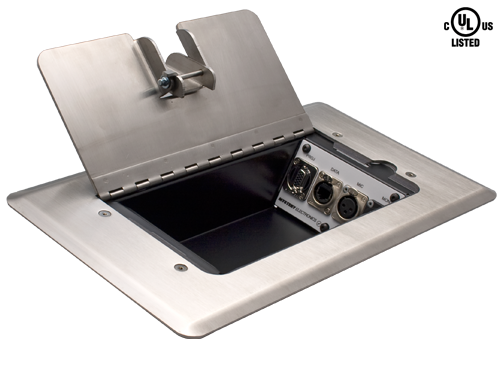

The UL and cUL Listed FMCA2800 raised access floor box assembly combines flexibility, ease of installation, high capacity, and long-term value in an economical floor box assembly.

Unique design and 12 gauge cover supports loads in excess of the 300lb UL standard. Ideal for classrooms, houses of worship, conference rooms, courtrooms, performance venues or anywhere connections are needed in the floor. The attractive design and finish allows for the FMCA2800 to also be used for in-wall applications.

FMCA2800 floor box assembly includes: 1ea cover, 1ea gasket, 1ea basket, mounting screws and hardware.

Insert panels, duplex power option and rough-in box ordered separately.

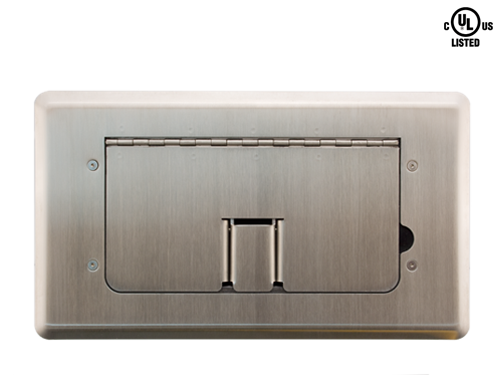

Attractive stainless steel 12 gauge cover with satin finish

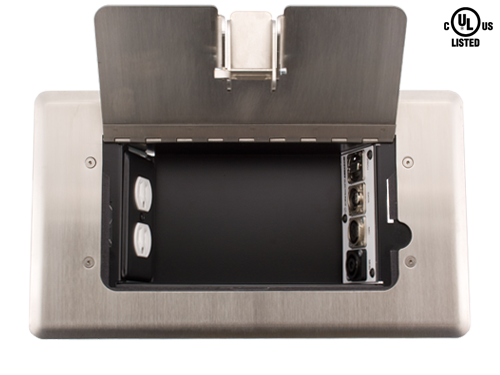

Accepts all ModuLine Insert Panels (up to 8 XLR type connectors, active devices or duplex power)

Cable Door allows large cables up to 1.25" O.D.

Self-trimming cover installs on top of carpet or hard surface

Accommodates Decora®, AAP®, and MAAP® active devices

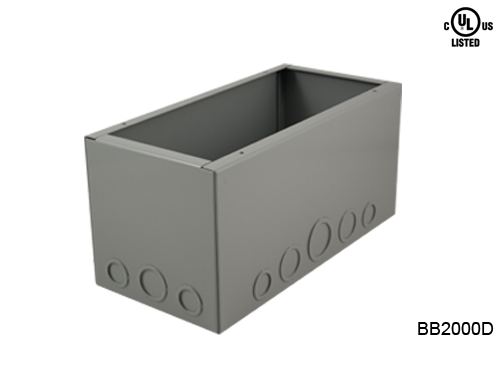

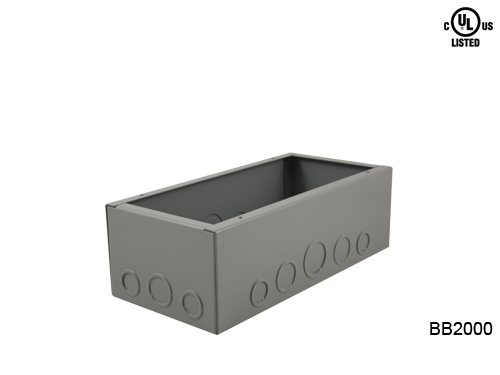

Concrete rated rough-in box for installation above grade
